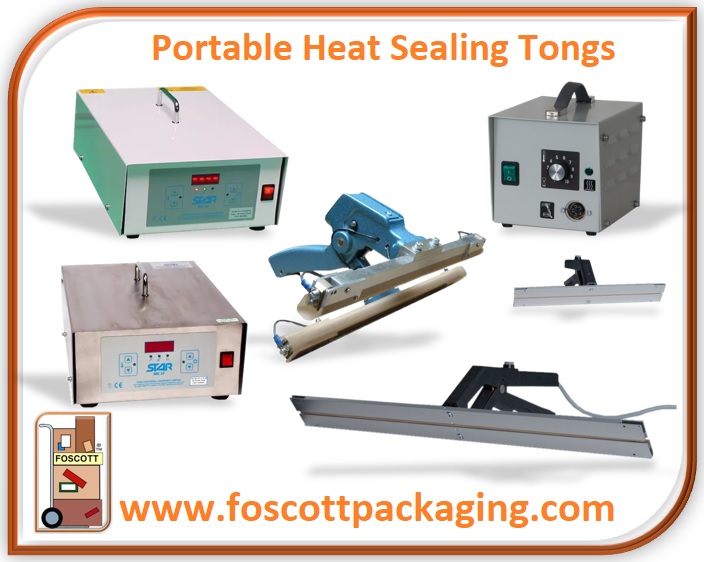

Portable Heat Sealing Tongs
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Due to the portable character, these tong sealers are particularly
suitable for sealing all kinds of strange shaped products.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

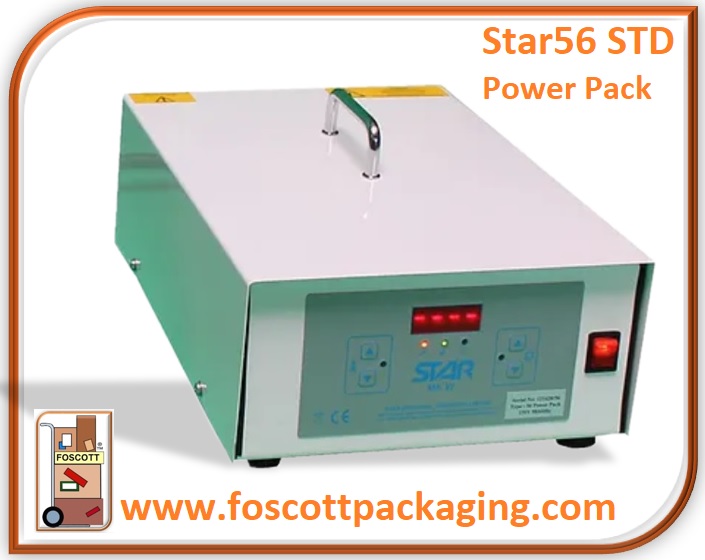

STAR 56
Star 56 Power Pack with 6 pin connector.
Power pack only

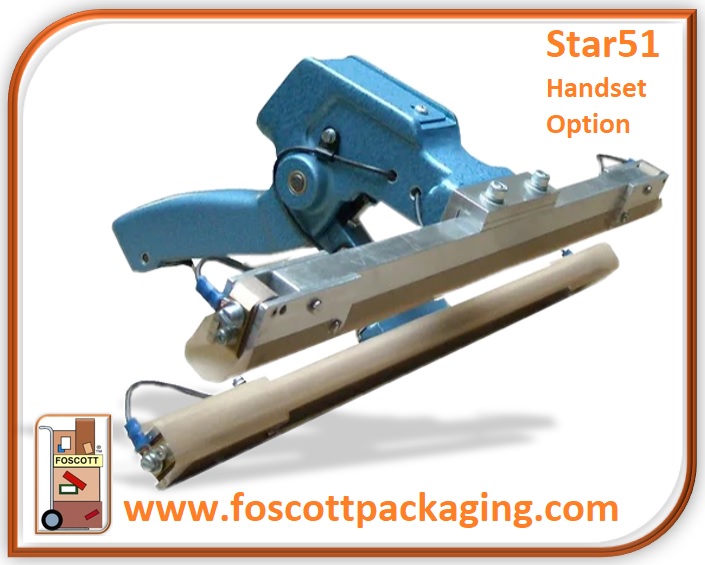

Model displayed with a Star51 SG300 hand sealer unit as an option.
The Star 56 is a power pack designed to be connected to our range of handsets or sealing jaws.
The power pack is finished in powder coated mild steel.
Choice of jaw lengths 150mm, 300mm, 450mm.
Seal width between 2 and 20mm.
Latching and non-latching handsets.
Star MKV auto compensation timer board.
Foot switch, push button or automatic cycle starts.
Seal / cut / seal versions for hazardous products.
230v or 115v power supply.
Powder coated mild steel.
£792.00 + Vat
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

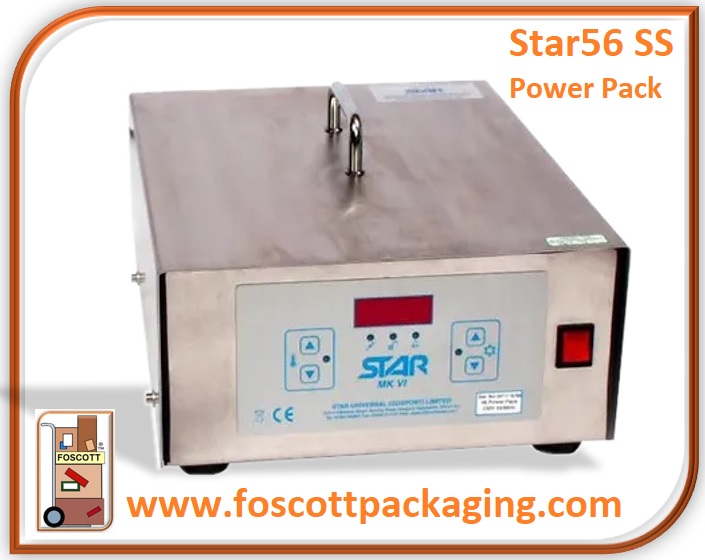

STAR 56 SS
Star 56 Stainless Steel Power Pack
Can also be supplied in IP65 format.
The Star 56 is a power pack designed to be connected to our range of handsets or sealing jaws.
The power pack is finished in stainless steel.
Choice of jaw lengths 150mm, 300mm, 450mm.
Seal width between 2 and 20mm.
Latching and non-latching handsets.
Star MKV auto compensation timer board.
Foot switch, push button or automatic cycle starts.
Seal / cut / seal versions for hazardous products.
230v or 115v power supply.
Stainless steel construction.
£823.00 + Vat
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
STAR 51 SG150
51 handset
150mm Seal
With a 3mtr trailing lead and 6 pin connector
£629.00 + Vat
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
STAR 51 SG300
51 handset
300mm Seal
With a 3mtr trailing lead and 6 pin connector
£636.00+ Vat
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
STAR 51 SG450
51 handset
450mm Seal
With a 3mtr trailing lead and 6 pin connector
£643.00 + Vat
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
TPST
Impulse Sealer Super Poly Tongs
Transformer and a choice of 3 hand sets, 280mm, 380mm, 680mm
230V - 1ph - 50/60Hz
Power - 1500W
Weight - 7kgSize - 270mm x 190mm x 190mm
The machine needs to be connected to a transformer ( TPS ), where the seal time can be set
according to the film you are using.
Once the jaws are closed the button is pressed and the
seal will start, indicated by a control light.
After the sealing time has passed ( max. 1 - 3 sec. ) the sealing will stop automatically and you can open the tongs.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Power - 1500W
Weight - 7kg
TPST

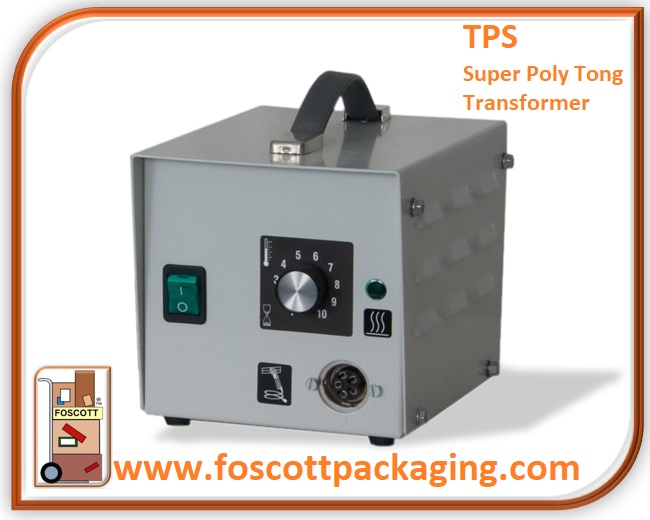

TPS Transformer
For Impulse Sealer Super Poly Tongs
Driver for the Super Poly Tong
230V - 1ph - 50/60HzPower - 1500W
Weight - 7kg
Size - 270mm x190mm x 190mm
£388.00 + Vat
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
281PS
Poly Tongs for TPST Transformer
Seal length 280mm
Seal width 3mm wide. Cable length 5 mtrs.
Impulse Sealer
Hand Operated.
Due to it's portable character, this machine is particularly suitable for sealing all kinds of strange shaped products. The bi-active seal bars ( both upper and lower seal are equipped with a resistance wire ) allows the sealing of thick polyethylene up to 2 x 0,3 mm.
Furthermore it will be possible to seal most of the laminate films, a simple test will tell you if the machine will be adequate for your film or not.
The machine needs to be connected to a transformer TPS, where the seal time can be set according to the film you are using. Once the jaws are closed the button is pressed and the seal will start, indicated by a control light.
After the sealing time has passed ( max. 1 - 3 sec. ) the sealing will stop automatically and you can open the tongs.
£380.00 + Vat
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

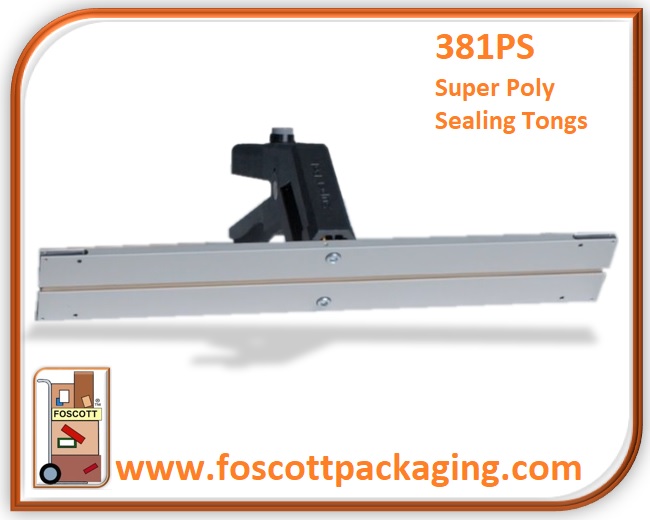

381PS
Poly Tongs for TPST Transformer
Seal length 380mm
Seal width 3mm wide. Cable length 5 mtrs.
Impulse Sealer
Hand Operated.
Due to it's portable character, this machine is particularly suitable for sealing all kinds of strange shaped products. The bi-active seal bars ( both upper and lower seal are equipped with a resistance wire ) allows the sealing of thick polyethylene up to 2 x 0,3 mm.
Furthermore it will be possible to seal most of the laminate films, a simple test will tell you if the machine will be adequate for your film or not.
The machine needs to be connected to a transformer TPS, where the seal time can be set according to the film you are using. Once the jaws are closed the button is pressed and the seal will start, indicated by a control light.
After the sealing time has passed ( max. 1 - 3 sec. ) the sealing will stop automatically and you can open the tongs.
£406.00 + Vat
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
631PS
Poly Tongs for TPST Transformer
Seal length 630mm
Seal width 3mm wide. Cable length 5 mtrs.
Impulse Sealer
Hand Operated.
Due to it's portable character, this machine is particularly suitable for sealing all kinds of strange shaped products. The bi-active seal bars ( both upper and lower seal are equipped with a resistance wire ) allows the sealing of thick polyethylene up to 2 x 0,3 mm.
Furthermore it will be possible to seal most of the laminate films, a simple test will tell you if the machine will be adequate for your film or not.
The machine needs to be connected to a transformer TPS, where the seal time can be set according to the film you are using. Once the jaws are closed the button is pressed and the seal will start, indicated by a control light.
After the sealing time has passed ( max. 1 - 3 sec. ) the sealing will stop automatically and you can open the tongs.
£426.00 + Vat
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
IWT450
Impulse Heat Sealing Tongs
450mm x 3mm Seal
Effective for film thickness 2 x 500 micron.
Aluminium barrier foil and thermoplastics.
Adjustable weld time.
Versatile, heavy duty tongs make light work of the heaviest sealing jobs.
The comfortable grips and high power output ensure effective sealing of materials up to 2 x 500 microns thick. Engineered for both safety and efficiency.
Convenient hooks allow the tongs to be safely hung and stored, allowing residual heat to dissipate.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
